Pioneer Technology LLC
Measurement

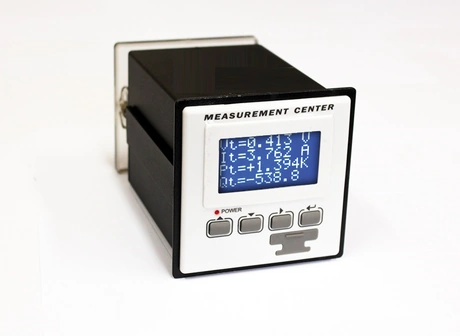

Measurement Center
Measurement Center measures all electrical parameters with great accuracy (0.2) and can be used to monitor and manage energy consumption in power substations, feeders, transformers, motors and generators. This device measures and saves all electrical parameters like voltages, currents, power, power factor, energy, voltage/current harmonics. It can have different options like analog & digital outputs, digital inputs, GPRS modem and communication ports. (on request) It can be suitable alternative to all foreign digital meters and analog counters and a perfect choice for numerous applications.

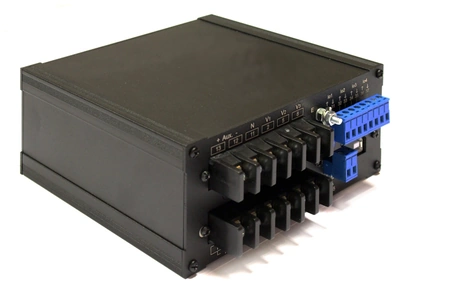

Multi Transducer
Multi Transducer measures all electrical parameters with great accuracy (0.2). Due to having RS485 port and modbus protocol and four analog outputs, this product can be connected to new and old types of RTUs. This product has been designed and manufactured by order of Fars Regional Electricity Company. Due to having RS485 port and analog outputs at the same time, high accuracy, valid test type, warranty and long after-sales service, it is a suitable model for high voltage substations.

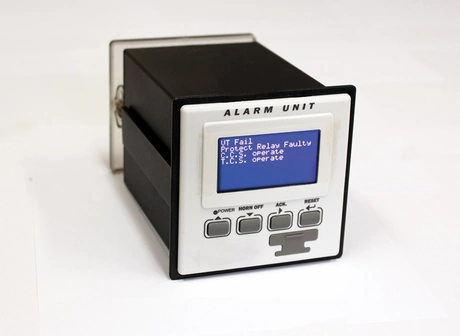

Alarm Unit
This device has the ability to display and record 17 alarms and status. This device uses graphic LCD to display alarms and status information to the operator. Alarm and status information and the time of occurrence are recorded in the device memory. This device has an RS485 port for monitoring. In addition to the facilities it provides for operators and repair units, it is also possible to issue commands to disconnect/connect switches or devices remotely.

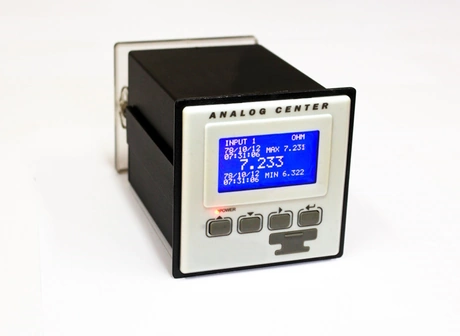

Analog Center
This device is designed to measure different analog parameters such as temperature,
pressure,vibration, etc. This product receives data from six different analog inputs simultaneously. One of the prominent features of this device is the possibility of setting different alarms and trips. Inputs that can be connected to the analog center are: Temperature sensors, PT100, Type K and type J thermocouples, current 4-20mA, voltage 0-5V DC, etc.

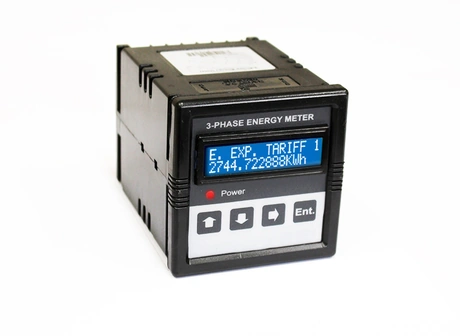

3-Phase Power Energy Meter
This device measures all electrical parameters such as voltage, current, power, power factor, reactive power, active & reactive energy with three adjustable time tariffs, etc..
This device has an RS485 port , Modbus RTU protocol and can be read in softwares, so it provides a comprehensive monitoring system at a reasonable price.
